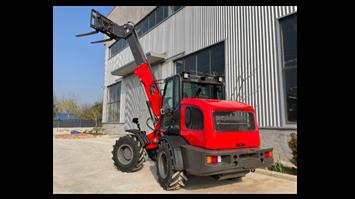

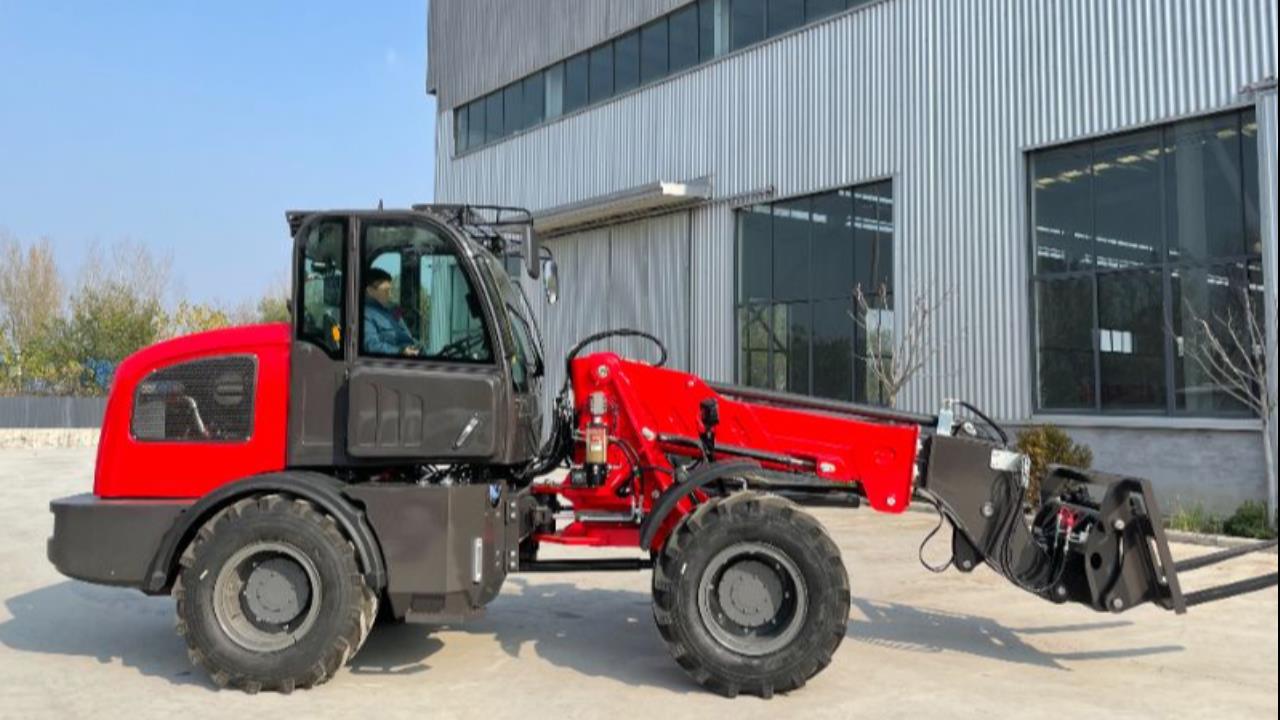

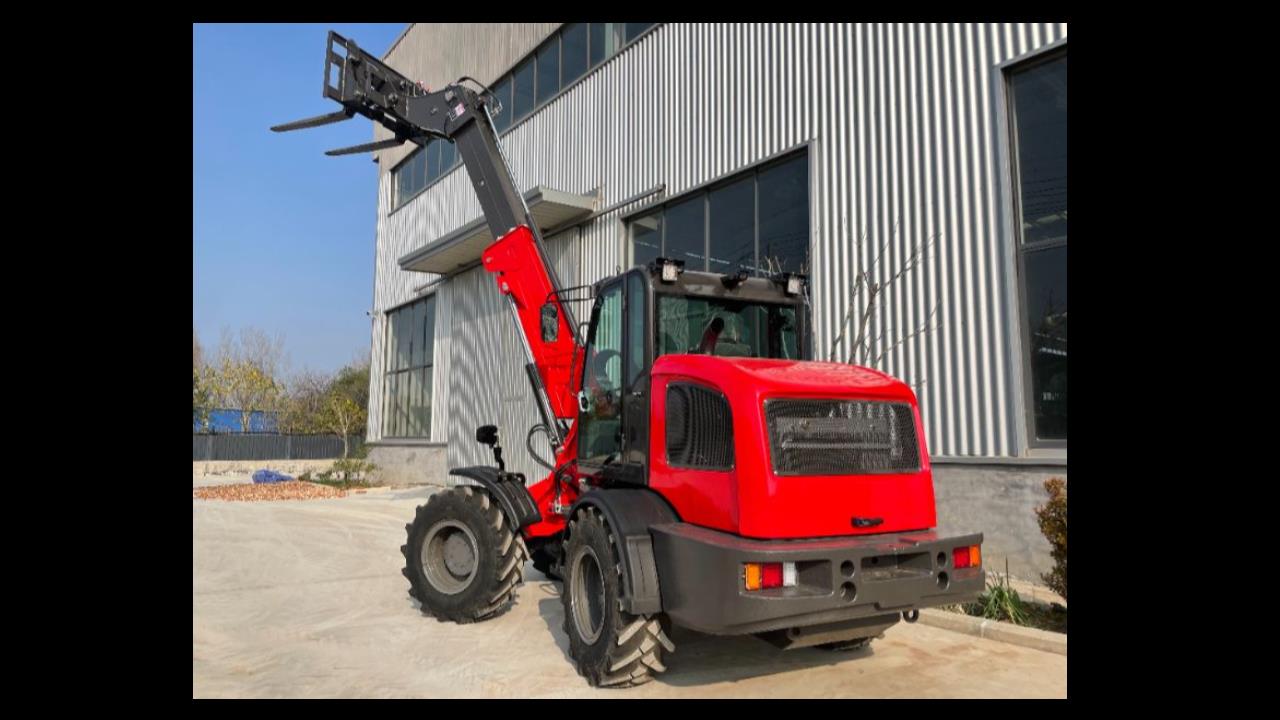

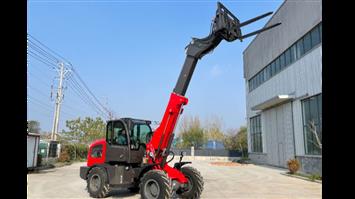

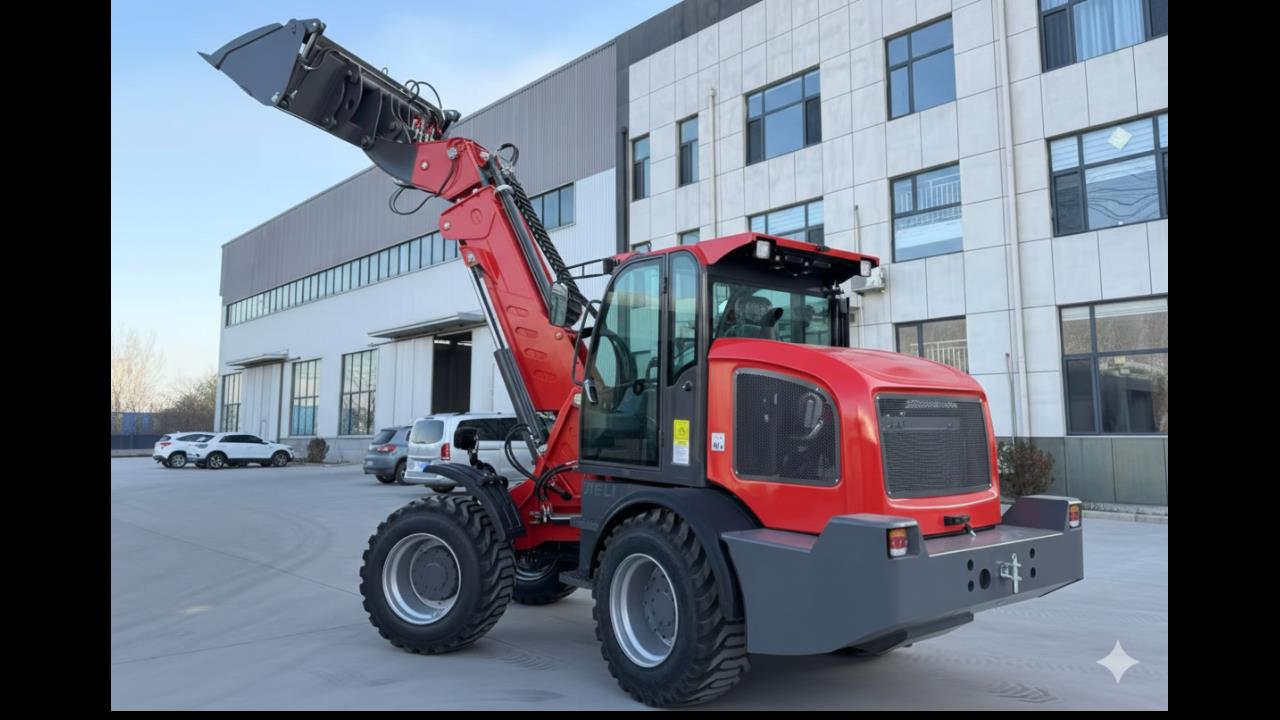

Deermax D25T Telescopic Loader — Specifications

General

• Model: Deermax D25T

• Machine Type: Telescopic Wheel Loader

• Condition: Brand New

• Lifting Capacity: 2,500 kg

• Operating Weight: 6,700 kg

• Rated Bucket Capacity: 1.1 m³

• Maximum Lift Height: 5,000 mm

• Certification: CE

• Standard Tire: 16/70-20

Engine & Powertrain

• Engine: Cummins EPA Tier 4 (USA & Canada)

• Rated Power: 75 HP

• Fuel Type: Diesel

• Cooling: Water-cooled, 4-cylinder

• Transmission: Power-shift gearbox

• Drive: 4x4

• Electric Control for Forward & Reverse

• Maximum Travel Speed: 40 km/h

• Gradeability: 35°

Performance

• Maximum Tractive Force: 45 kN

• Maximum Breakout Force: 35 kN

• Maximum Dump Height (Stage 1): 4,350 mm

• Maximum Dump Height (Stage 2): 3,180 mm

• Maximum Dump Reach: 1,300 mm

• Minimum Turning Radius (outside wheels): 4,400 mm

• Maximum Steering Angle: 35°

• Oscillation Angle: 7°

Dimensions

• Overall Dimensions (L × W × H):
  6,700 × 2,070 × 2,680 mm

• Wheelbase: 2,480 mm

• Wheel Tread: 1,680 mm

• Ground Clearance: 330 mm

Hydraulic System

• System Pressure: 20 MPa

• Boom Lifting Time: 6.4 seconds

• Total Cycle Time: 11.5 seconds

• Fuel Tank Capacity: 94 L

• Quick Hitch System

• BOBCAT-Style Quick Hitch

• 3-Way Hydraulic Joystick Control

Brake System

• Service Brake: Air-assist hydraulic disc brakes

• Parking Brake: Manual disc brake

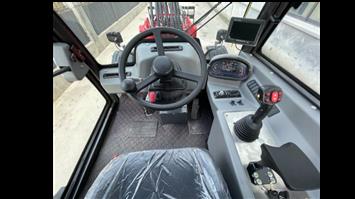

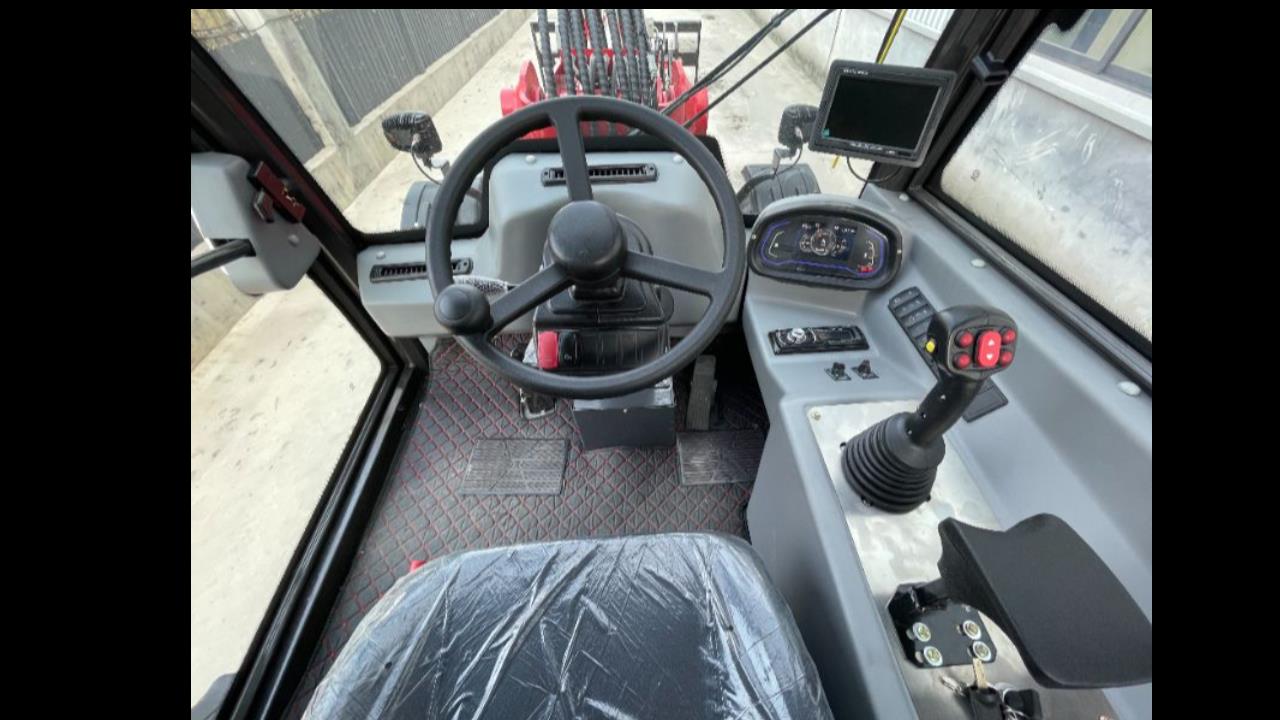

Cab & Operator Comfort (BIG CABIN)

• Enclosed large cabin

• Air Conditioning (AC)

• Cab heater + 110V engine heater

• Radio

• Cooling fan

• LED cabin lamp

• LED work lights

• Reverse camera

• Back-up alarm (back sound)

• Waterproof electrical plug-ins

• Adjustable suspension seat

• Multifunction display

• Window hammer

• Fire extinguisher

• ROPS & FOPS certified safety structure

Standard Attachments

• Level standard bucket

• Pallet forks

(Quick hitch allows fast change to grapples, snow blades, bale forks, etc.)

Key Advantages

• Telescopic boom for high stacking and long reach

• Cummins EPA4 engine — low emissions, high torque

• Heavy-duty structure for agriculture & construction

• Smooth lifting with automatic leveling

• High breakout force

• Designed for farms, warehouses, biomass, snow removal, construction & bulk yards

Overview

Discover the Deermax D25T TELESCOPIC LOADER, your next dream vehicle.

Cummins Motor 1 Year Warranty

It comes with following standard features:
